AIR/GAS PUMPS MODEL VACUUM PRESSURE FLOW

TECHNICAL DATA SHEET

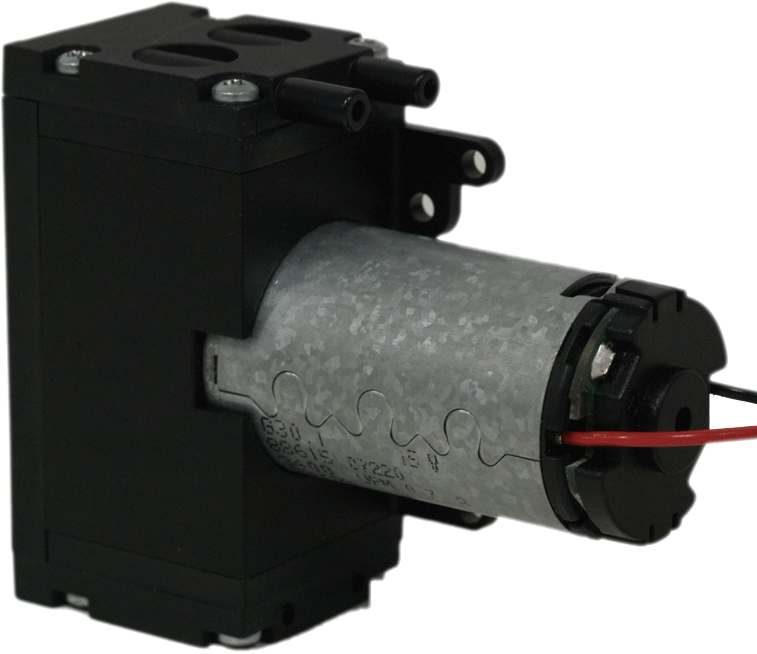

NEO  SERIES -906 mbar 1,2 bar 7 LPM DOWNLOAD AIR CATALOG
New!!  PARALLEL -773 mbar 1,5 bar 4 LPM

MR -813 mbar 1,55 bar 7,5 LPM DOWNLOAD AIR CATALOG

SR -813 mbar 1,55 bar 8 LPM DOWNLOAD AIR CATALOG
New!!

ZR -867 mbar 1,2 bar 8,5 LPM DOWNLOAD AIR CATALOG
New!!

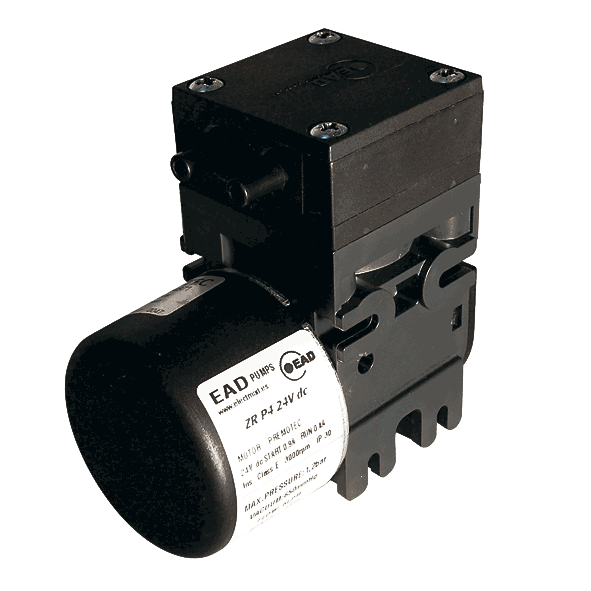

ZR   brushless -867 mbar 1,2 bar 6 LPM DOWNLOAD AIR CATALOG
New!!

MRP3 SERIES -920 mbar >3 bar 7 LPM DOWNLOAD AIR CATALOG
 PARALLEL -800 mbar 1,5 bar 14 LPM

SRP3  SERIES -920 mbar > 3 bar 7 LPM DOWNLOAD AIR CATALOG
New!!  PARALLEL -800 mbar 1,5 bar 14 LPM

ZRP3 SERIES -969 mbar > 2 bar 7,5 LPM DOWNLOAD AIR CATALOG
New!!  PARALLEL -867 mbar 1,3 bar 15,5 LPM

EVOR -960 mbar > 2 bar 12 LPM DOWNLOAD AIR CATALOG
New!!
MR10 -813 mbar 1,3 bar 15 LPM DOWNLOAD AIR CATALOG
SR10 brushless -826 mbar 1,3 bar 14 LPM DOWNLOAD AIR CATALOG

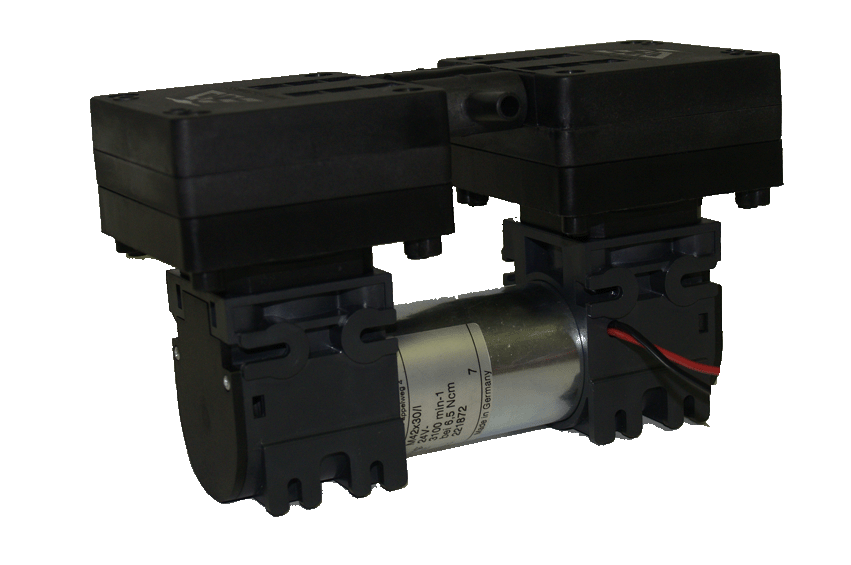

EVO10R -946 mbar >2 bar 23 LPM DOWNLOAD AIR CATALOG
New!!

H5 -813 mbar 1,6 bar / > 2 bar 6 LPM DOWNLOAD AIR CATALOG

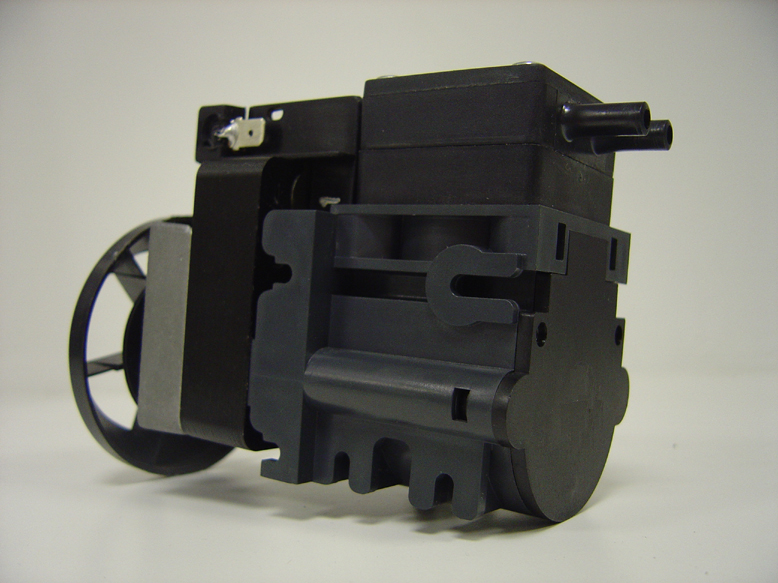

S5 -813 mbar 1,6 bar 6 LPM DOWNLOAD AIR CATALOG
New!!

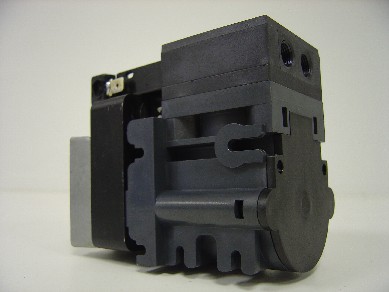

Z5 -867 mbar 1,2 bar 6,5 LPM DOWNLOAD AIR CATALOG
New!!

H5P3 SERIES -946 mbar > 3,5 bar 6  LPM DOWNLOAD AIR CATALOG
 PARALLEL -813 mbar 1,6 bar 12 LPM

S5P3 SERIES -946 mbar > 3,5 bar 6  LPM DOWNLOAD AIR CATALOG
New!!  PARALLEL -813 mbar 1,6 bar 12 LPM

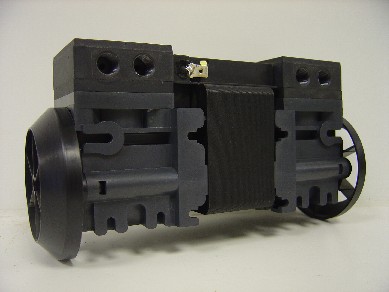

Z5P3 SERIES -960 mbar > 2 bar 6,5 LPM DOWNLOAD AIR CATALOG
New!!  PARALLEL -867 mbar 1,2 bar 13  LPM

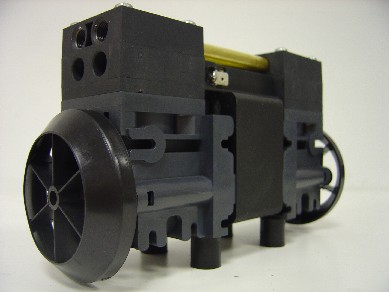

EVO5 -960 mbar >2 bar 10,5 LPM DOWNLOAD AIR CATALOG
New!!

C5 -813 mbar 1,6 bar / > 2 bar 6 LPM DOWNLOAD AIR CATALOG

H10 - 813 mbar 1,4 bar 14 LPM DOWNLOAD AIR CATALOG

HX10 - 826 mbar 1,6 bar 14 LPM

HX10P3 SERIES -960 mbar > 2 bar 14 LPM DOWNLOAD AIR CATALOG
 PARALLEL -826 mbar 1,6 bar 27 LPM

HX10-05 -833 mbar >1,8 bar 13 LPM DOWNLOAD AIR CATALOG
HX10P3-05 SERIES -960 mbar > 2 bar 13 LPM DOWNLOAD AIR CATALOG
 PARALLEL -826 mbar 1,6 bar 25 LPM
EVO10 -960 mbar >2 bar 24 LPM DOWNLOAD AIR CATALOG
-960 mbar 1 bar 20 LPM
H30 -866 mbar >1 bar 20 LPM DOWNLOAD AIR CATALOG
H30P3 SERIES -960 mbar > 2 bar 25 LPM DOWNLOAD AIR CATALOG
 PARALLEL -880 mbar 1 bar 48 LPM
EVO30 -960 mbar > 1 bar 44 LPM DOWNLOAD AIR CATALOG
-960 mbar > 2 bar 38 LPM
LIQUID PUMPS MODEL VACUUM PRESSURE FLOW TECHNICAL DATA SHEET

MR -350 mbar   0,65 LPM DOWNLOAD LIQUID CATALOG

MRP3 PARALLEL -350 mbar   1,1 LPM DOWNLOAD LIQUID CATALOG
 SERIES -520 mbar   0,7 LPM

H5 -325 mbar   0,55 LPM DOWNLOAD LIQUID CATALOG

H5P3 PARALLEL -350 mbar   1,1 LPM DOWNLOAD LIQUID CATALOG
 SERIES -520 mbar   0,7 LPM

CA5 -325 mbar   0,55 LPM DOWNLOAD LIQUID CATALOG

All the mentioned  values have been obteined using air at 20 ºC. All the values are guaranteed minimums. If you need more info and specific data do not hesitate and contact us. E.A.D. as pumps manufacturer, reserves the right to change any piece or set of pieces from our models, without previous notice or  authorization. Always for continuous improvement and developement.
